Android tablet PC with Vesa Onwall Mounted NFC reader RS485 G-Sensor GPIO for Conference Room Booking

Product Categories

Shenzhen Sibo Industrial & Development Co., Ltd.

Contact Now

Name: Android tablet PC with Vesa Onwall Mounted NFC reader RS485 GSensor GPIO for Conference Room Booking
Brand: SIBO
Price: 1 USD

Brand Name : SIBO

Model Number : SIBO

Certification : CE, FCC

Place of Origin : Shenzhen

MOQ : 1 unit

Price : based on your feature choices

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-25 working days

Packaging Details : 10 pcs in one carton

Screen Size : 10.1 Inch Capacitive Toush screen

Wall Mount : VESA Onwall Surface Mount

Power Supply : DC IN 9V-36V/Power over Ethernet RJ45

PS : Proximity Sensor

Serial Port : RS485, rs232

Resolution : 1280*800

Feature : NFC reader, RS485, RS232, GPIO

Customized : Boot up logo

Contact Now

Android tablet PC with Vesa Onwall Mounted NFC reader RS485 G-Sensor GPIO for Conference Room Booking

Android tablet PC with Vesa Onwall Mounted NFC reader RS485 G-Sensor GPIO for Conference Room Booking

Specially developed for Conference Room Booking and similar applications with below features:

10.1 inch IPS Display & Capacitive screen
Android rooted OS
Auto Power on feature, no any buttons on the face
Optional customized firmware without navigation menu bar (support full screen software in a Kiosk model)
Proximity Sensor (can be used to detect objects and people in the detection range) & Light Sensor ( for detecting environment brightness, could reduce or even close the display backlight )
RJ45 (Power over Ethernet feature, IEEE 802.3 AF 48V standard)
Front speakers
On Wall mounting Bracket
Back interfaces:USB / optional (RS485,RS232 Serial Port / Sound output / GPIO)

Selling Points:

Android OS rooted
Auto Power On feature
Optional customized firmware without navigation menu bar (support full screen software in a Kiosk mode)
Proximity Sensor & Light Sensor
RJ45 (Power over Ethernet feature, IEEE 802.3 AF 48V)
Front 2*1W Speakers,Camera,Microphone
DC IN 9-36V
On Wall VESA mounting

Network:

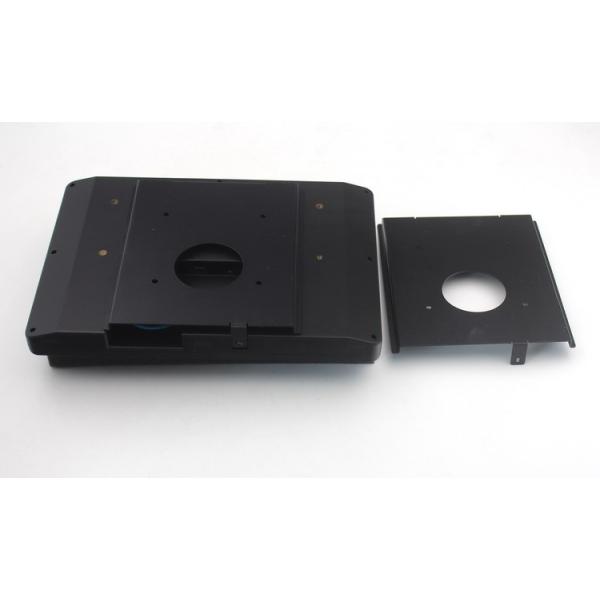

On Wall Mounting Bracket:

Built in Proximity Sensor Light Sensor

Specification:

Model Number		Q8910
Hardware Specs	Solution	Allwinner’s A20 processor, a Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
	Touch Screen	Capacitive Touch Screen, 5 Points Touch
	RAM	1GB
	Nand Flash	8GB
	Sound System	*1W 2**

Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Integrated Hi-Fi 100dB audio codec Dual analog mic amplifiers
	Language	Support multi-languages

Interfaces	Front	USB Port, HOST Mode By Default (Optional)
		Long Distance Proximity Sensor (PS) and Ambient Light Sensor (ALS)(Optional)
		VOL-, VOL+, A, B, BACK, On/Off(3 Buttons Available, Optional)
	Back	DC IN Power Terminal
		USB Port, HOST Mode By Default
		Ethernet Interface(RJ45)
		RJ11 For Earphone Jack (Optional For GPIO, AV IN+GPIO,RS485, RS232)

Network	WiFi+Bluetooth	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	3G	3G (W-CDMA)(Optional)

Power Supply	DC IN	DC 9V - 36V

Customized	Auto Boot	Auto Boot Up When Power Supplies

Our Service:

Hardware and software support:

Modification on both hardware and software to meet your requirements

Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.

Android tablet PC with Vesa Onwall Mounted NFC reader RS485 G-Sensor GPIO for Conference Room Booking Images
